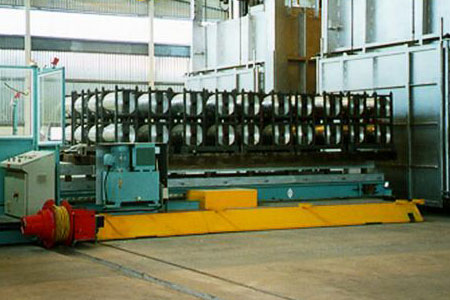

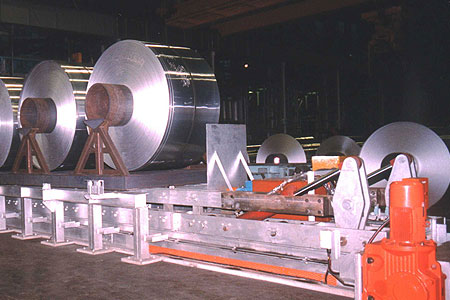

Backed up by proven reference installations of Mechatherm, AIFL can provide latest technology for Aluminium heat treatment Furnaces. Range includes Coil / Foil Annealing, Billet Homogenizing, Slab heating, Solution heat treatment, Ageing and Die preheating furnaces.

Salient features:-

  • Custom designed to suit customer’s product size, Batch capacity and specific time-temperature cycles.
  • With or without Nitrogen atmosphere. Unique atmosphere control system specific to initial purging and heat treatment operation.
  • Temperature uniformity to the tune of +/- 3°C at the end of soak.
  • Improved re-circulation of furnace atmosphere for Rapid heating.
  • Plug type fans for ease of maintenance.
  • Pneumatic door clamping with double seal to prevent leakage.
  • Electric or Radiant tube gas fired.
  • PC/PLC based SCADA control system with HMI interface.

Salient features:-

  • VFD Control of speed and full reversing of recirculation fan for better temperature uniformity.
  • High temperature uniformity to the extent of +/- 3°C at the end of soak.
  • Dedicated charging machine for batch loading of series of furnaces.
  • Electric or Radiant tube gas fired.
  • PC/PLC based SCADA control system with HMI interface.

Salient features:-

  • Higher temperature uniformity to the tune of +/- 3°C at the end of soak.
  • Higher Re-circulation of furnaces atmosphere for rapid heating.
  • Plug type fans for the ease of maintenance.
  • VFD control of speed and full reversing of circulation fans ensures better temperature uniformity.
  • SCADA control system with HMI interface.

Salient features:-

  • Vertical quench system with minimum quench time.
  • Elevated traversing furnaces over quench tank & load station.
  • Unique system for fast door opening and clamping.
  • SCADA control system.
